Hooking Walkthrough
🎮 Frida Hooking Deep Dive
we explore dynamic instrumentation on an Android game using Frida.
We will:
- Understand what Hooking is
- Learn how Frida works
- Modify runtime values (Lives, High Score)
- Remove shooting cooldown
- Force coin spawning
- Analyze Activity lifecycle interception
🧠 What is Hooking?
Android applications are written in Java or Kotlin and compiled into DEX bytecode, which runs inside the Android Runtime (ART) on the device. The runtime is responsible for executing the app’s code, managing memory, and interacting with system APIs. Frida does not intercept a connection between the app and the virtual machine; instead, it injects into the running application process itself. By hooking methods inside ART at runtime, Frida allows us to monitor, modify, and manipulate application behavior dynamically.
Hooking is a technique that allows us to:
- Intercept a function call
- Access or modify its arguments
- Call the original function (or not)
- Modify its return value

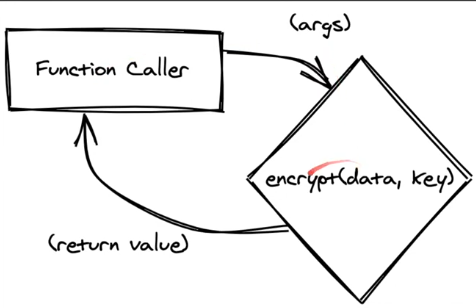

Normal Flow
EX : SUPPOSE U HAVE App do 2 FUNCTION
1- GET KEY 2- ENCRYPT
THE REAL FLOW CALLER CALL THE FUNCTION AND FUNCTION RETURN A VALUE
WITH HOOKING FLOW WE CAN
1- HAVE ACCESS TO THE FUNCTION ARGUMENTS
2- CALL THE REAL FUNCTION WITHOUT THE CALLER NEED
3- RETUNR A REAL OR MODIFIED VALUES
1
Caller → Function → Return Value

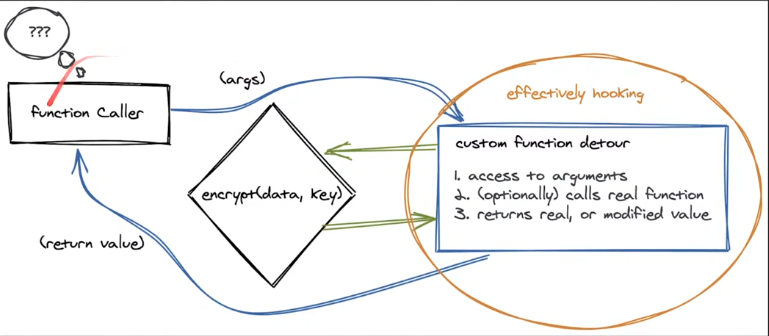

Hooked Flow
1
Caller → Hook → (Optional) Real Function → Modified Return Value
With hooking we can:
- Read sensitive arguments
- Modify internal variables
- Bypass security checks
- Change application behavior at runtime
🔥 What is Frida?
Frida is a dynamic instrumentation toolkit used for:
- Reverse engineering
- Runtime modification
- Security testing
- Mobile penetration testing
Frida allows us to inject JavaScript into a running process and:
- Intercept Java methods
- Modify object fields
- Call internal functions
- Enumerate memory instances
In Android:
Frida bridges communication between the Android application and the Java Virtual Machine (ART/Dalvik).

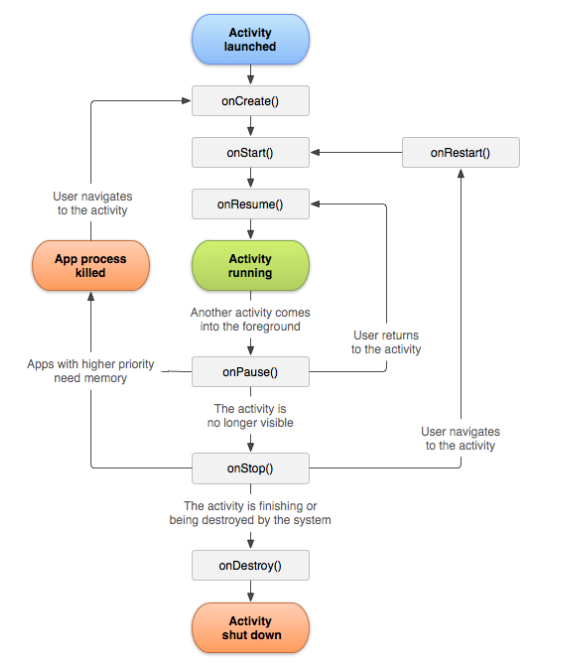

📱 Android Activity Lifecycle Hooking
A foreground activity is:
The screen currently visible and interacting with the user.
We can hook lifecycle methods like onResume().
Example: Hook All Activities
1
2
3
4
5
6
7
Java.perform(() => {
let ActivityClass = Java.use("android.app.Activity");
ActivityClass.onResume.implementation = function() {
console.log("Activity resumed:", this.getClass().getName());
return this.onResume();
}
});
This logs every activity when resumed.
🎮 Target Application: SpacePeng
SpacePeng! is a small, free, and open-source (GPLv3) space shooter game for Android, heavily inspired by classic arcade titles like Space Invaders and Phoenix. It is designed for quick sessions, challenging players to see how many levels they can beat.
THE PLAYER INSTENCE SOURCE CODE IS :
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
package de.fgerbig.spacepeng.components;
import com.artemis.Component;
import com.artemis.annotations.PooledWeaver;
@PooledWeaver
/* loaded from: classes.dex */
public class Player extends Component {
public static final int DEFAULT_LIVES = 5;
public static final String SPRITE_NAME = "player";
public static final String SPRITE_NAME_SHIELD = "playershield";
public int score;
private State state = State.ALIVE;
public int lives = 5;
public enum State {
ALIVE,
RESPAWNING,
DEAD
}
public void setState(State state) {
this.state = state;
}
public boolean isState(State state) {
return this.state.equals(state);
}
}
AS WE SEE IT WE HAVE 2 ROWS OF LIVES
1
public static final int DEFAULT_LIVES = 5;
1
public int lives = 5;
WITH THIS SCRIPT
Package observed during analysis:
de.fgerbig.spacepeng
We decompiled the APK and began analyzing components.
❤️ Modifying Player Lives
Player Class Analysis
1
2
3
4
public class Player extends Component {
public static final int DEFAULT_LIVES = 5;
public int lives = 5;
}
We notice:
Static default lives
Instance variable lives
Changing static constants at runtime often fails.
So instead, we enumerate existing instances and modify them directly.
💉 Frida Script: Modify Player Lives
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

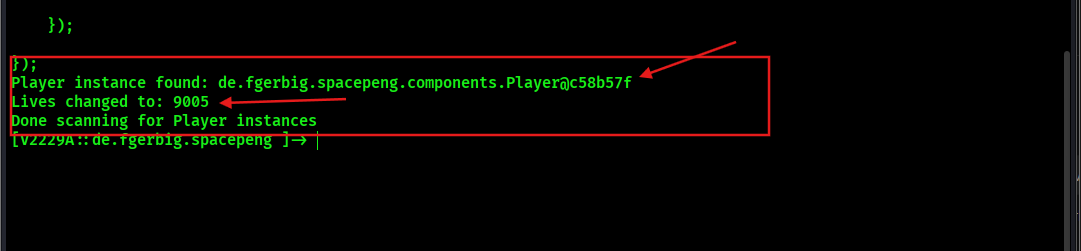

Java.perform(function() {
Java.choose("de.fgerbig.spacepeng.components.Player", {
onMatch: function(instance) {
console.log("Player instance found: " + instance);
instance.lives.value = 9005;
console.log("Lives changed to: " + instance.lives.value);
},
onComplete: function() {
console.log("Done scanning for Player instances");
}
});
});
Result

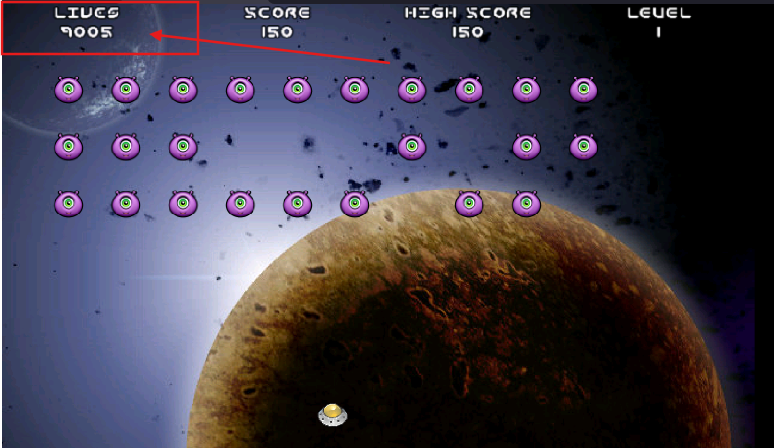

✅ Player now has 9005 lives.
🏆 Modifying High Score
We found another interesting class:
1
2
3
4
5
6
7
8
de.fgerbig.spacepeng.services.Profile
Profile Class
private int highScore = 0;
public void setHighScore(int highScore) {
this.highScore = highScore;
}
We can modify:
The private variable directly
Or hook the setter method
💉 Frida Script: Force High Score
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Java.perform(function() {
Java.choose("de.fgerbig.spacepeng.services.Profile", {
onMatch: function(instance) {
console.log("Profile instance found: " + instance);
instance.highScore.value = 999999;
console.log("HighScore changed to: " + instance.highScore.value);
},
onComplete: function() {
console.log("Done scanning for Profile instances");
}
});
});
Result

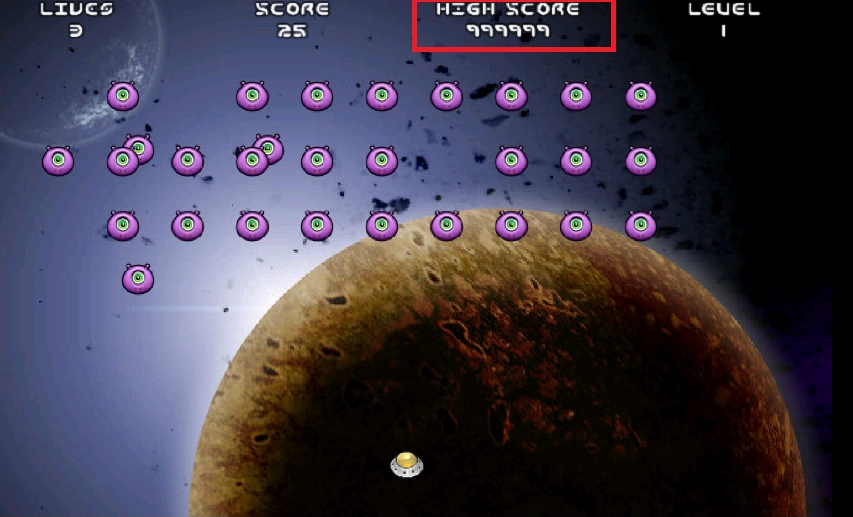

✅ High score updated in memory instantly.
🔫 Removing Shooting Cooldown
We analyzed the shooting logic inside:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
de.fgerbig.spacepeng.systems.PlayerInputSystem
Fire States
The system depends on:
fireState
timeToShoot
timeToContinue
shoot
world.delta
States:
BLOCKED
CONTINUE
ALLOW
Cooldown logic:
this.timeToShoot = 0.25f;
Meaning:
4 shots per second maximum.
💉 Frida Script: Rapid Fire
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Java.perform(function() {
Java.choose("de.fgerbig.spacepeng.systems.PlayerInputSystem", {
onMatch: function(instance) {
console.log("Hooking instance: " + instance);
setInterval(function() {
instance.setFireAllowed();
instance.timeToShoot.value = 0;
instance.shoot.value = true;
}, 50);
},
onComplete: function() {
console.log("Persistent rapid fire active");
}
});
});
Result

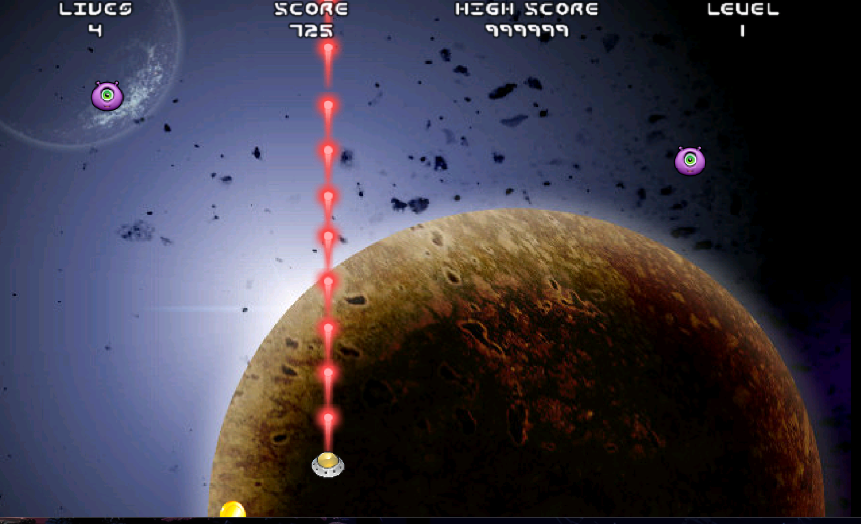

🔥 Unlimited rapid fire. No cooldown. Always shooting.
🪙 Coin Spawn Manipulation
We found coin spawning logic inside:
1
2
3
4
5
6
7
8
9
10
11
12
13
de.fgerbig.spacepeng.systems.CoinSpawningSystem
Original Logic
public void dispenseRandomCoin() {
float r = MathUtils.random();
if (r < 0.1f) {
createCoin(EXTRALIFE);
} else if (r < 0.5f) {
createCoin(DOUBLESHOT);
} else {
createCoin(SHIELD);
}
}
Coins depend on randomness + delay.
💉 Frida Script: Coin Rain
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Java.perform(function() {
Java.choose("de.fgerbig.spacepeng.systems.CoinSpawningSystem", {
onMatch: function(instance) {
console.log("Hooking CoinSpawningSystem: " + instance);
setInterval(function() {
instance.enabled.value = true;
instance.delay.value = 0.0;
}, 50);
},
onComplete: function() {
console.log("Persistent coin spam active");
}
});
});
Result

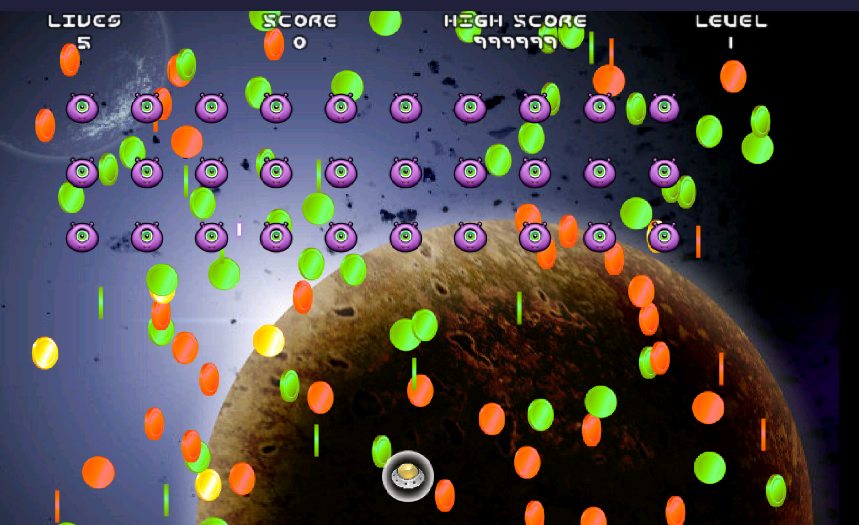

🪙 Continuous coin spawning. Power-ups everywhere.
🧠 Final Thoughts
Frida allows complete runtime control over Android applications.
With it, we:
Modified lives
Overwrote high scores
Removed shooting cooldown
Forced coin spawning
All without modifying the APK.
Dynamic instrumentation is extremely powerful in mobile security research and reverse engineering.
